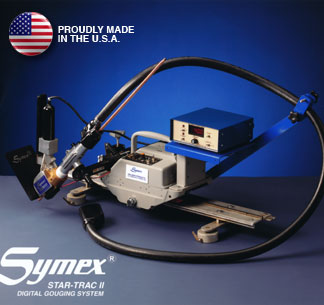

Star-Trac II - Automatic Gouging Torch
- Designed for continuous gouging of long seams in the manufacturing of ships, pressure vessel tanks, bridges, etc.
- High resolution voltage control capability regulates accurate gouging depth to a machine-like tolerance of ± .015" (.04mm) even over a warped plate
- Can be mounted on a travel system such as a BUG-O unit or similar equipment with a holding capacity of at least 20lbs. (9.07kg)
- Total weight of system less travel equipment (carriage and track) is 20lbs.
- Equipped to work with 5/16" to 5/8" Symex jointed "Secur-Fit" gouging electrodes up to 1200 amps
- Ideally suited for out-of-position work due to its light weight
- Input voltage of the control unit is: Single Phase: AC 115V 50/60Hz 100W. Also available in 230V
