Foundry Torch: S-66 Triple Action Foundry Torch

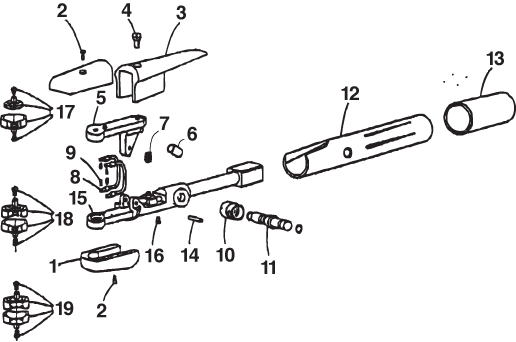

S-66 Triple Action Foundry Torch | |||
---|---|---|---|
REF.# | DESCRIPTION | PART# | |
N/S | Body assembly for fixed angle. | 10038 | |
N/S | Upper arm for fixed angle | 10045 | |
N/S | Allen screws for no-valve | 10048 | |
N/S | Large button for no-valve | 10053 | |
N/S | Body assembly for no-valve | 10059 | |
1 | Insulator assembly | 10065 | |
2 | Insulator screw (2 required) | 10090 | |
3 | Lever assembly | 10073 | |
4 | Lever screw | 10092 | |
5 | Upper arm | 10055 | |
6 | Air tube | 10094 | |
7 | Spring | 10088 | |
8 | Jumper assembly (2 required) | 10099 | |
9 | Jumper screw (4 required) | 10097 | |
10 | Valve bonnet assembly | 10040 | |
*10 a) Bonnet | 10054 | ||
*11 b) Spool assembly | 10067 | ||
** c) Spool button (short) | 10061 | ||
** d) Spool (brass center) | 10062 | ||
** e) Spool button (long) | 10063 | ||
** f) Spool o’ring (2 required) | 10064 | ||
12 | Handle | 10078 | |
N/S | Spanner wrench | 10083 | |
13 | Handle extension | 10087 | |
14 | Pin | 10056 | |
15 | Body Assembly | 10057 | |
16 | Tension Screw. | 10091 | |
***17 | Head assembly for 3/8” thru 3/4” carbon | 10108 | |
***18 | Head assembly for 3/8”, 1/2” & 5/8” carbon | 10106 | |
***18 | Head assembly for 3/4” carbon | 10107 | |
19 | 2-Hole head for 3/8”, 1/2” & 5/8” carbon | 10110 | |
19 | 2-hole head for 3/4” carbon | 10112 | |
19 | 2-hole head for 1” carbon | 10113 | |
* included in valve bonnet assembly ** included in spool assembly *** assemblies equipped with terminator head N/S - Not shown |
