Star-Trac III - Parts List

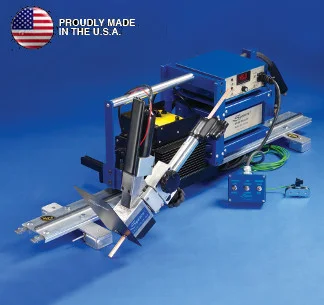

| Star-Trac III - Automatic | ||
|---|---|---|
| REF.# | DESCRIPTION | PART# |
| 1 | Heat Shield Bottom Cover | 51051 |
| 2 | ST-III No-Valve Air / Power Inlet w/ insulator & screw | 51056 |
| 3 | Electrode Alignment Tube | 51045 |
| 3 | 60" Air Hose Assembly from Torch Head to Air Valve Out | 68781 |
| 4 | 24" Air Hose Assembly From Auto Air-Valve into Air Compressor | 68782 |
| 5 | Air Hose Swivel Male Connector | 68783 |
| 6 | 3/8" x 1/2" Male Pipe & Barb | 68784 |
| 7 | 90° Brass Male to Male Connector | 68785 |
| 8 | Brass Male to Female Extension to connect to (Air In) | 10071 |
| 9 | 4 O/T Welding Cable (36" Required) | 00112 |
| 10 | UC Male Connector Cover | 10021 |
| 11 | 8/32 x 1/4" Set Screw | 10023 |
| 12 | Locking Set Screw (3 required) | 10042 |
| 13 | 4 O/T UC Male Connector | 10026 |
| 14 | Auto Air-Valve Assembly Box, Includes 36" Jumper & 110 Power Cords | 68786 |
| 15 | Digital Control Panel, includes Red, Green, Black Sensor & 110 Power Cords | 68795 |
| Note the 4 pc. Red, Green, Black Sensor & 110 Power Cord set only is | 68789 | |
| 16 | Green Wire Magnet (Optional) | 51000 |
| 17 | 3 Switch Remote w/ 15" Cable | 51058 |
| Star-Trac III - Automatic Gouger Head | ||
|---|---|---|
| REF.# | DESCRIPTION | PART# |
| 1 | Heat Shield Bottom Cover | 51051 |
| 2 | Shield / Cover Screws (2 required) | 51007 |
| 3 | Steel Shield | 51006 |
| 4 | Aluminum Housing w/ Logo (used after 10-10-10) | 51046 |
| 5 | 10-31 x 1/4" Allen Screw | 51016 |
| 6 | Alum Housing Bushing Set. (includes 4) | 51017 |
| 7 | Digital Servo Motor w/ 45" cord & plug | 68799 |
| 8 | Vertical Drive Shaft | 51101 |
| 9 | Large Drive Gear w/screw | 51020 |
| 10 | Pinion Gear w/screw | 51003 |
| 11 | Drive Roll w/screw | 51009 |
| 12 | Drive Roll Bushing 1.45" long w/screw (used after 10-10-10) | 51022 |
| 13 | Clevis Insulator | 51043 |
| 14 | Drive Roll Shaft | 51014 |
| 15 | Name Plate Set (includes 4) | 51023 |
| 16 | Aluminum Clevis Assembly (used after 2/6/12 & includes 17-10) | 51024 |
| 17 | Clevis Socket Head Set Screws 10-32 x 1 1/2" (2 required) | 51005 |
| 18 | Clevis Bronze Bushing Set (includes 2 bushings) | 51044 |
| 19 | Clevis Shaft (2 1/2" long) | 51002 |
| 20 | Spring Retainer (2 required) | 51026 |
| 21 | Chrome Spring | 51027 |
| 22 | 5/16" Copper Shoe Cap | 51008 |
| 22 | 3/8" Copper Shoe Cap | 51010 |
| 22 | 1/2" Copper Shoe Cap | 51011 |
| 22 | 5/8" Copper Shoe Cap | 51012 |
| 23 | Shoe Cap SCrew 8-32 x 3/8" (2 required) | 10090 |
| Brazed Current Tube Assy. (includes 24-28 new after 11/11/12) | 68793 | |
| 24 | Brass Shoe | 51047 |
| 25 | Copper Front Collar | 51032 |
| 26 | Front Collar Insulator | 51033 |
| 27 | Brass Current Tube | 51034 |
| 28 | Copper Threads | 68794 |
| 29 | Steel Tueb Rack Assembly | 51037 |
| 30 | Insulating Collar Air Seal | 51038 |
| 31 | ST-II Air Valve MANUAL w/ insulation | 51041 |
| 32 | Spool Assembly | 10067 |
| 33 | Bonnet | 10068 |
| 34 | Spanner Wrench | 10083 |
| 35 | Electrode Alignment Tube | 51045 |
| 36 | ST-III No-Valve Air / Power Inlet w/ insulator & screw | 51056 |
| 37 | Cable Set Screw | 10042 |
| 38 | Aluminum Torch Holder w/ 1 1/8" clamp | 51042 |
| 39 | Servo-Motor Guard | 51048 |
| 40 | Shaft Coupling | 51104 |
| 41 | Guard Mounting Screws | 51004 |
| 42 | Motor Mounting Screws & Washers (2 required) | 51083 |
| 43 | Metric Motor Bolts & Washers (4 required) | 51052 |
| 44 | Motor Mount Cover Screws (2 required) | 51085 |
| 45 | Motor Mount Cover | 51084 |
| 46 | Motor Mount | 51103 |
| 47 | Brass Shoe insulator | 51028 |
| 48 | Brass Shoe Insulator Screw | 51029 |
| 49 | Air Valve Locking Screw | 51094 |
