Gouging Torch: S-15 General Purpose Torch

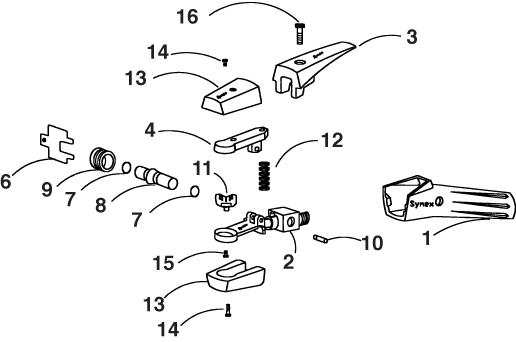

S-15 General Purpose Torch | |||
---|---|---|---|
REF.# | DESCRIPTION | PART# | |
1 | Handle | 10030 | |
2 | Body | 10031 | |
3 | Lever Assembly | 10032 | |
4 | Upper Arm | 10033 | |
5 | Valve Bonnet Assembly (incl.ref.# 6-8-9) | 10060 | |
6 | Spanner Wrench | 10083 | |
7 | Black O-Ring (2 required) | 10064 | |
8 | Valve Spool Assembly includes: | 10067 | |
— Button (long) | 10063 | ||
— O-Ring (2 required) | 10064 | ||
— Valve Spool (brass center) | 10062 | ||
— Button (short) | 10061 | ||
9 | Bonnet | 10068 | |
10 | Hinge Pin | 10066 | |
11 | Terminator Head Assembly | 10072 | |
12 | Spring | 10076 | |
13 | Insulator Assembly | 10085 | |
14 | Insulator Screw only | 10090 | |
15 | Head Screw only | 10091 | |
16 | Lever Screw only | 10092 | |
NS | Wave Lock Washer for Head Assembly | 10086 |
S-15 360° Swivel Cable | |||
---|---|---|---|
REF.# | DESCRIPTION | PART# | |
Torch End Connector Assembly. (incl.ref.# 1-2-3-4-5-7) | 20648 | ||
1 | Retainer Screw | 20643 | |
2 | O-Ring | 20684 | |
3 | Connector Nut | 20647 | |
4 | Spring Washer | 20645 | |
5 | Washer | 20685 | |
6 | Band (2 required) | 20690 | |
7 | Male Coupling | 20686 | |
8 | 7’ Conductor Assembly (includes 7&9) | 20689 | |
8 | 10’ Conductor Assembly (includes 7&9) | 20677 | |
9 | Female Coupling | 20693 | |
10 | 7’ Cover | 20688 | |
10 | 10’ Cover | 20678 | |
11 | Standard Boot | 20691 | |
11 | Long Boot | 50696 | |
12 | Female Connector Assembly | 20687 |
